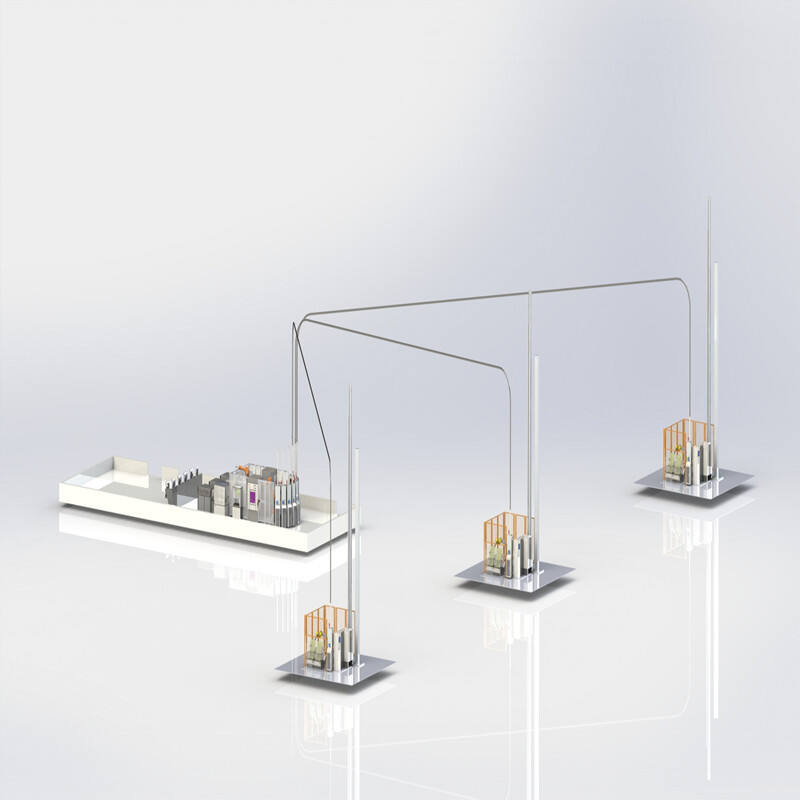

Automatic Pre-furnace Sampling And Delivery System

Description:

This system can achieve unmanned operation from sampling to sample delivery in the smelting production process, and is suitable for temperature measurement, sampling, and sample delivery of molten iron and steel in blast furnaces, electric furnaces, converters, argon blowing stations, refining furnaces (LF, RH), etc. The system integrates technologies such as intelligent control system, visual recognition system, fully automatic temperature measurement and sampling, and fully automatic demolding. The fully automatic intelligent temperature measurement and sampling system can automatically connect with the furnace analysis system, making it the first intelligent application in China to achieve the entire process of sampling, sampling, and detection. Can improve the safety factor, avoid safety accidents, enhance product quality and governance efficiency. The installation and debugging process of the system does not affect the production progress of the enterprise, helping to improve quality and efficiency, transform and upgrade, thereby achieving intelligent manufacturing and green manufacturing.

Features:

This system automatically completes the entire process of sampling, demolding, cooling, trimming the tail handle, and sending samples of molten steel and iron from the furnace. This system only requires workers to regularly place the sampler and temperature measuring head in the designated position, and the robot will automatically load it onto the sampling robot to complete the sampling, demolding, trimming handle and other processes, and finally send it to the sample delivery area (pneumatic sample delivery or furnace front automatic analysis system). Thus achieving full cycle unmanned operation from sampling in front of the furnace to analysis completion. The system can meet long - term stable operation, and the entire sample collection and delivery cycle can meet production requirements. The perfect combination of the fully automatic sampling system in front of the furnace and the fully automatic laboratory system in front of the smelting furnace makes the full cycle unmanned quality inspection of iron and steel composition analysis a reality.

Specifications:
